Overview
What it is.
A camera crane, or jib arm, is a counterbalanced arm that sweeps a camera through overhead and reveal moves. Ours are Stanton Jimmy Jib Triangles, one modular arm that builds to nine lengths from 6 ft 10 in to 40 ft. We have several, so a show can run more than one, and each goes out with a remote head and the required technicians.
- Maker
- Stanton
- Type
- Modular jib arm / camera crane
- Arm
- Jimmy Jib Triangle
- Reach
- 6'10" – 40'
- Lengths
- Nine modular configurations
- Head
- Remote head ready
- Operation
- Remote-operated
The arms
Every size of the Triangle
One modular arm that builds from 6'10" to 40'. Pick a size to see it drawn to scale.
Super
18' reach
50 lb payload
| Model | Reach | Max height | Min platform |
|---|---|---|---|
| 6' | 10' | 10' × 10' | |
| 9' | 13' | 10' × 10' | |
| 12' | 16' | 10' × 10' | |
| 15' | 20' | 16' × 12' | |
| 18' | 22' | 16' × 12' | |
| 21' | 24' | 16' × 12' | |
| 24' | 27' | 16' × 12' | |
| 30' | 32' | 20' × 16' | |
| 40' | 43' | 20' × 16' |
Arm reach is measured from the tripod fulcrum to the camera. The top strut is added at 9 feet, side struts at 18 feet, and the 40-foot MEGA uses a four-wheel base with a 25 lb camera-package limit. Every shorter size carries up to 50 lb with accessories.
Use cases
What the arm is for
Overhead reveals
Sweeping moves over a stage or set that open a shot from a high, wide angle.
Reach up to 40'
The modular arm builds out to 40 feet when a shot needs real height and throw.
Remote head moves
Run with a remote head so the camera pans and tilts smoothly through the arc.
On air

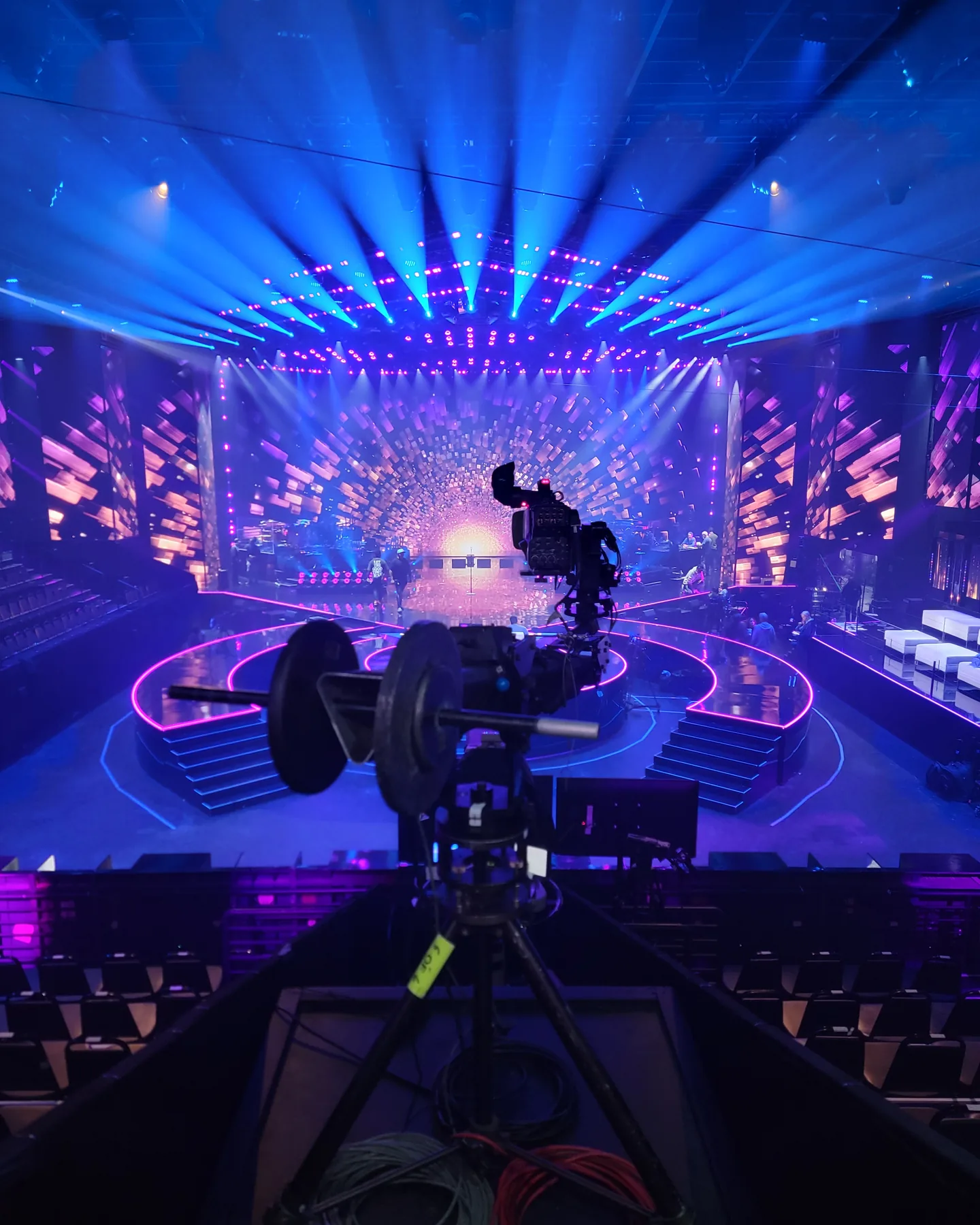

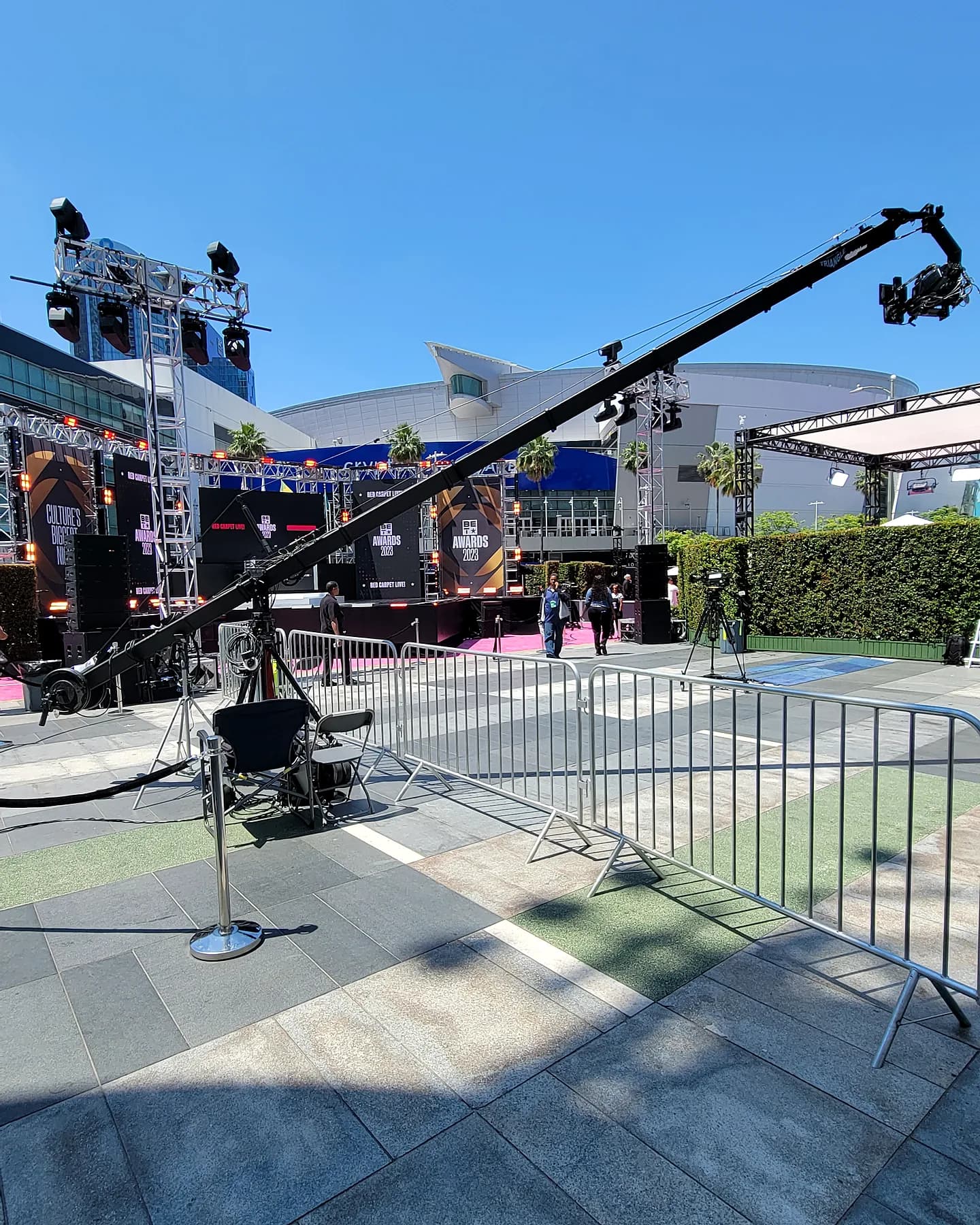

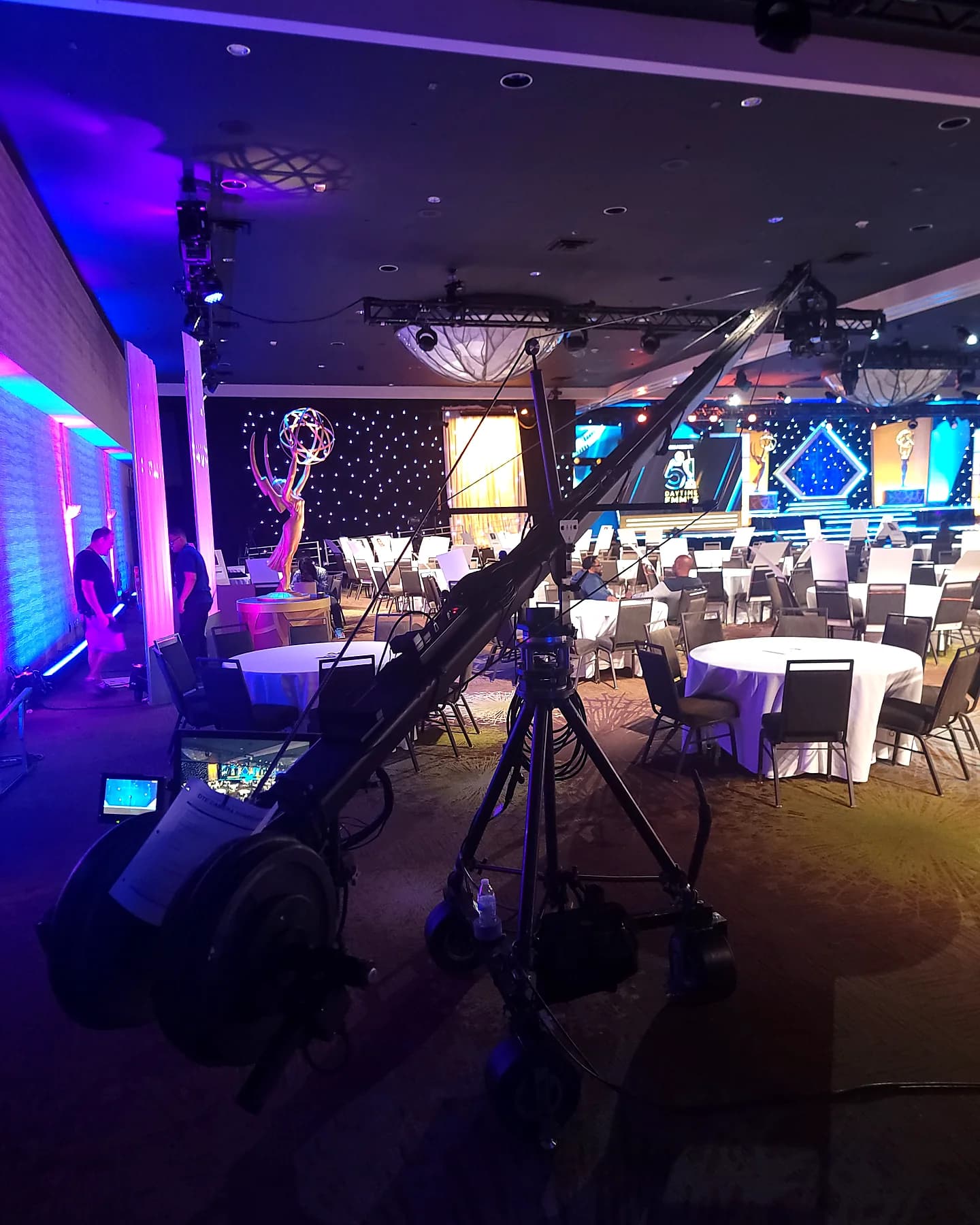

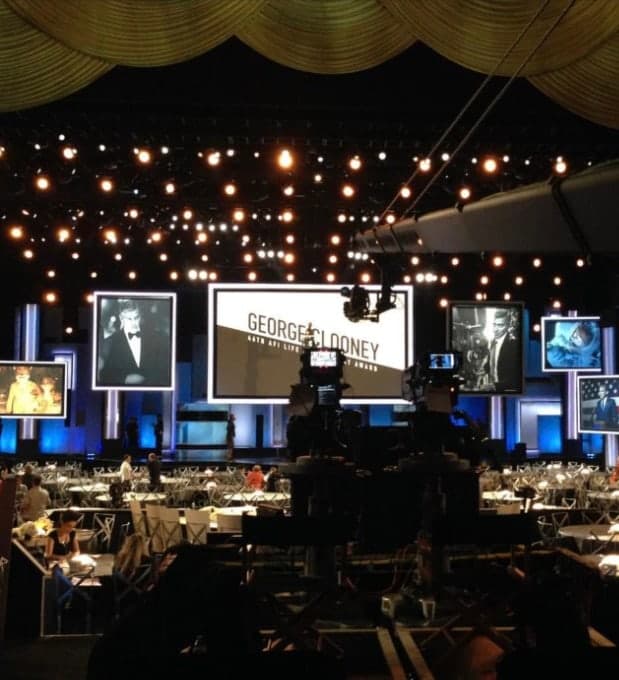

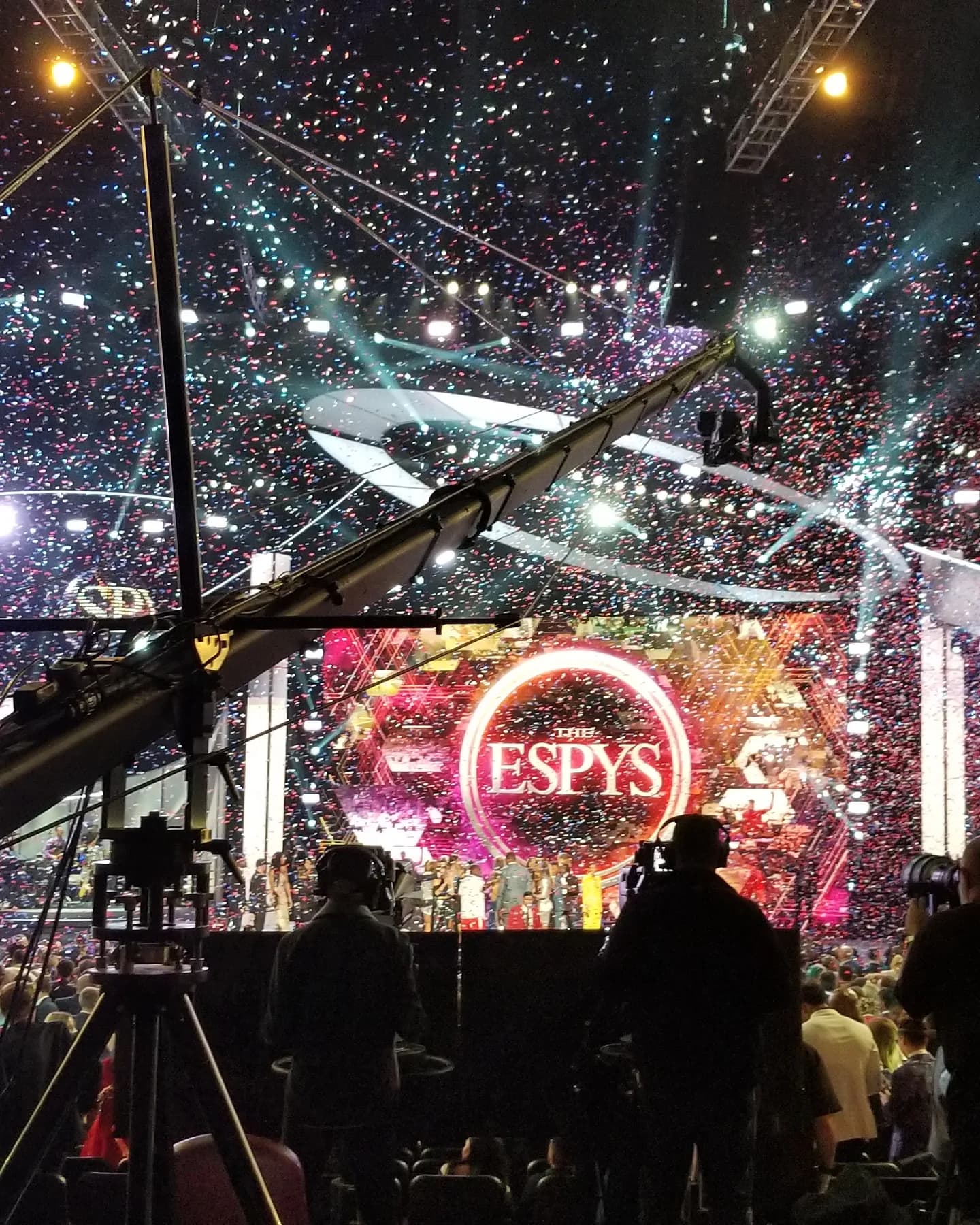

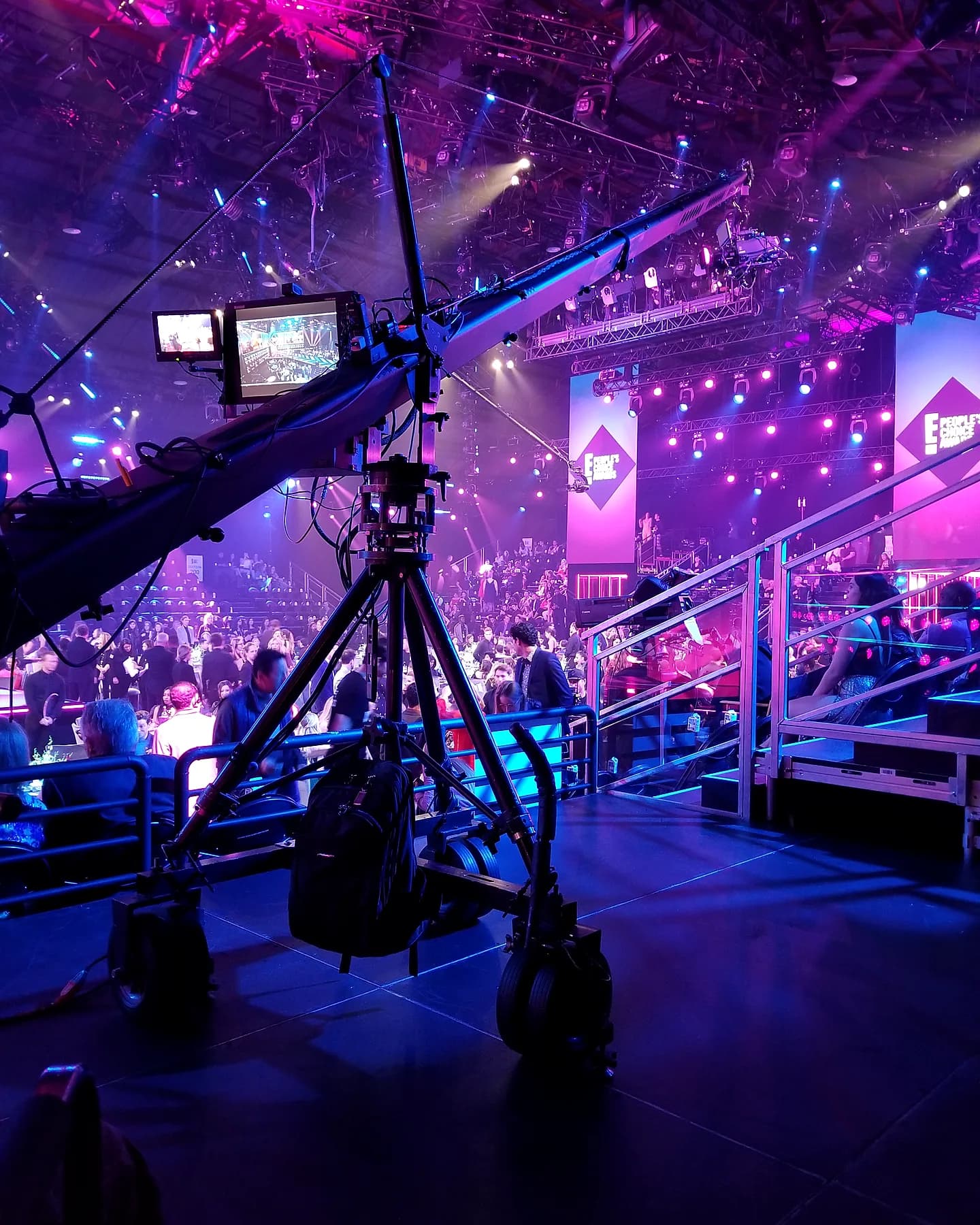

The Jimmy Jib on set
FAQ
Common questions.
What is a camera crane or jib arm?
A camera crane, or jib arm, is a counterbalanced arm that sweeps a camera through overhead and reveal moves, run with a remote head.
How far does the crane reach?
The arm builds in modular sections from 6 ft 10 in out to 40 ft. There are nine set lengths, and we pick the one that matches the shot and the floor space.
What jibs do you rent?
The Stanton Jimmy Jib Triangle. It is one modular arm rather than several different cranes, built to nine lengths from 6 ft 10 in to 40 ft.
Does the crane come with a remote head?
Yes. Every arm goes out with a remote head and an operator.
Book it
How much reach does the shot need?
The arms build from 6'10" to 40'. What we send depends on the arc you want and the floor space you have for the base.
