MAT Towercam 410

Mid-size column covering 54 to 126 inches, and the highest payload of the full-size towers.

Check availabilityCall 818-704-7873

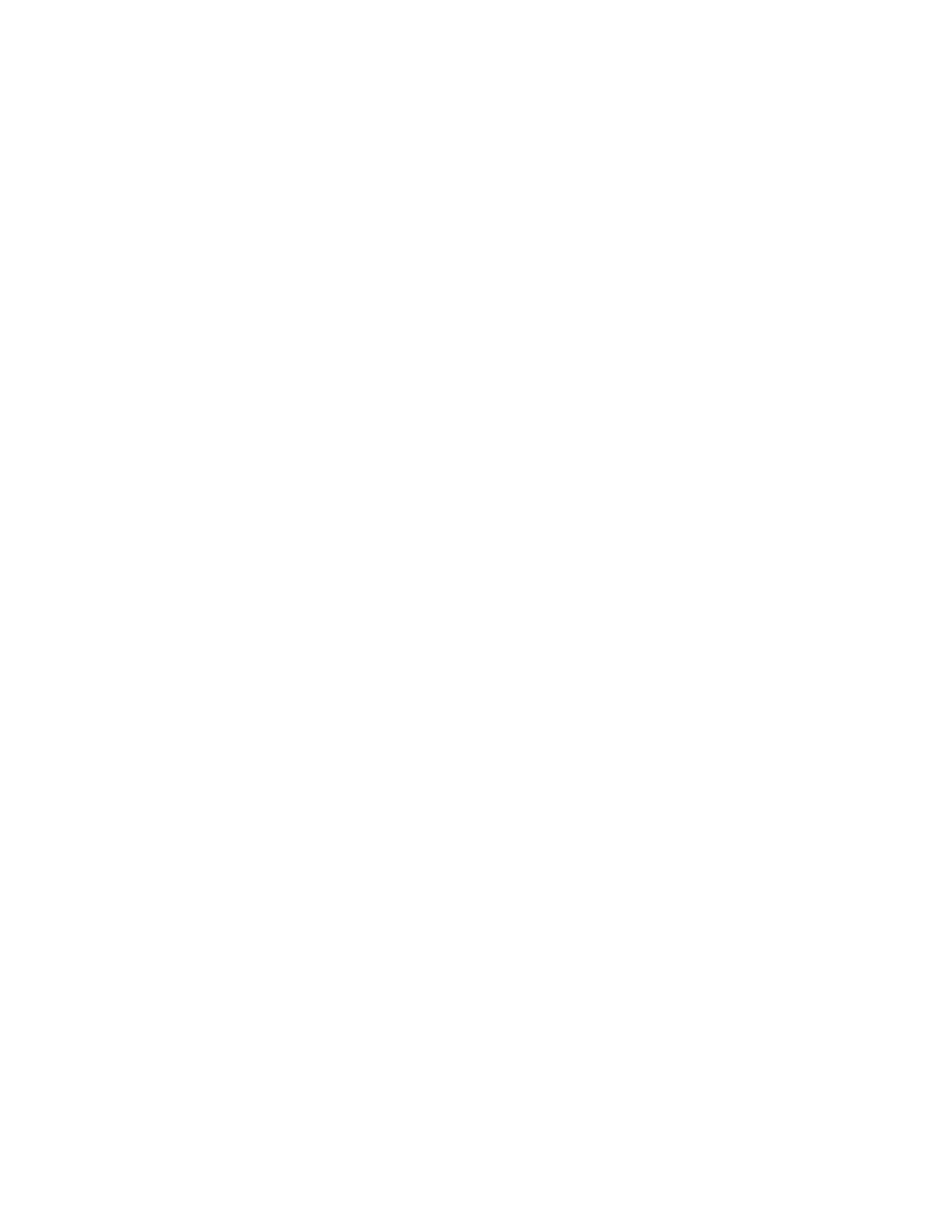

Technical drawing of the MAT Towercam 410 showing the column retracted at 54 inches and extended to 126 inches, with base dimensions

Specs

What it does

Rising wide shots in rooms with a ceiling or a lighting grid that rules out the taller columns.

Figures are column height. Total working height adds the remote head and base plate. Every towercam runs with a remote head and a Fluid Pictures technician.

Min height
54" (4' 6")
Max height
126" (10' 6")
Lift speed
~3 ft/s
Payload
130 lb
Weight
120 lb

On set

The 410 in use

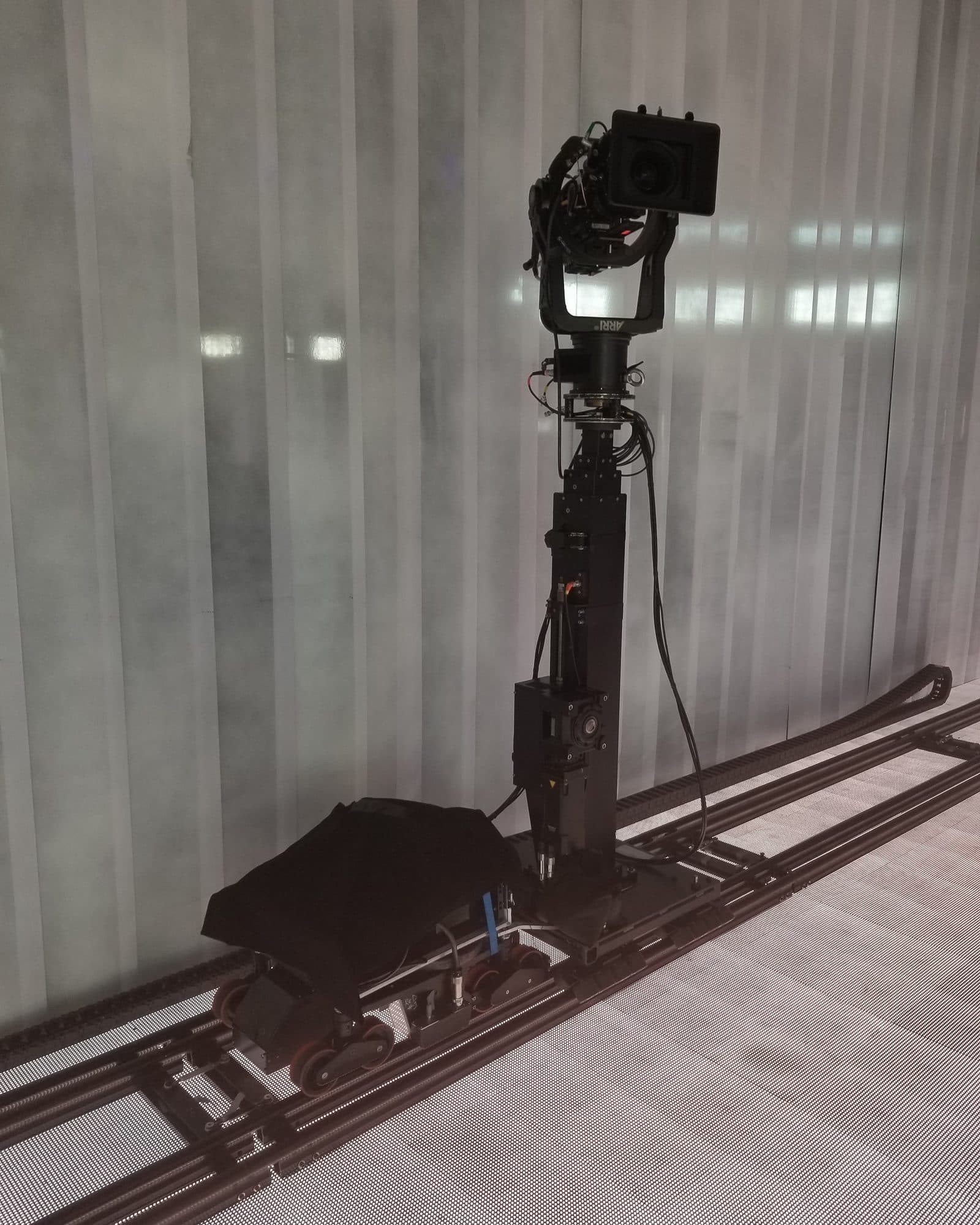

MAT Towercam 410 mounted on a track dolly with the column retracted, carrying a remote head and camera
Retracted, on track

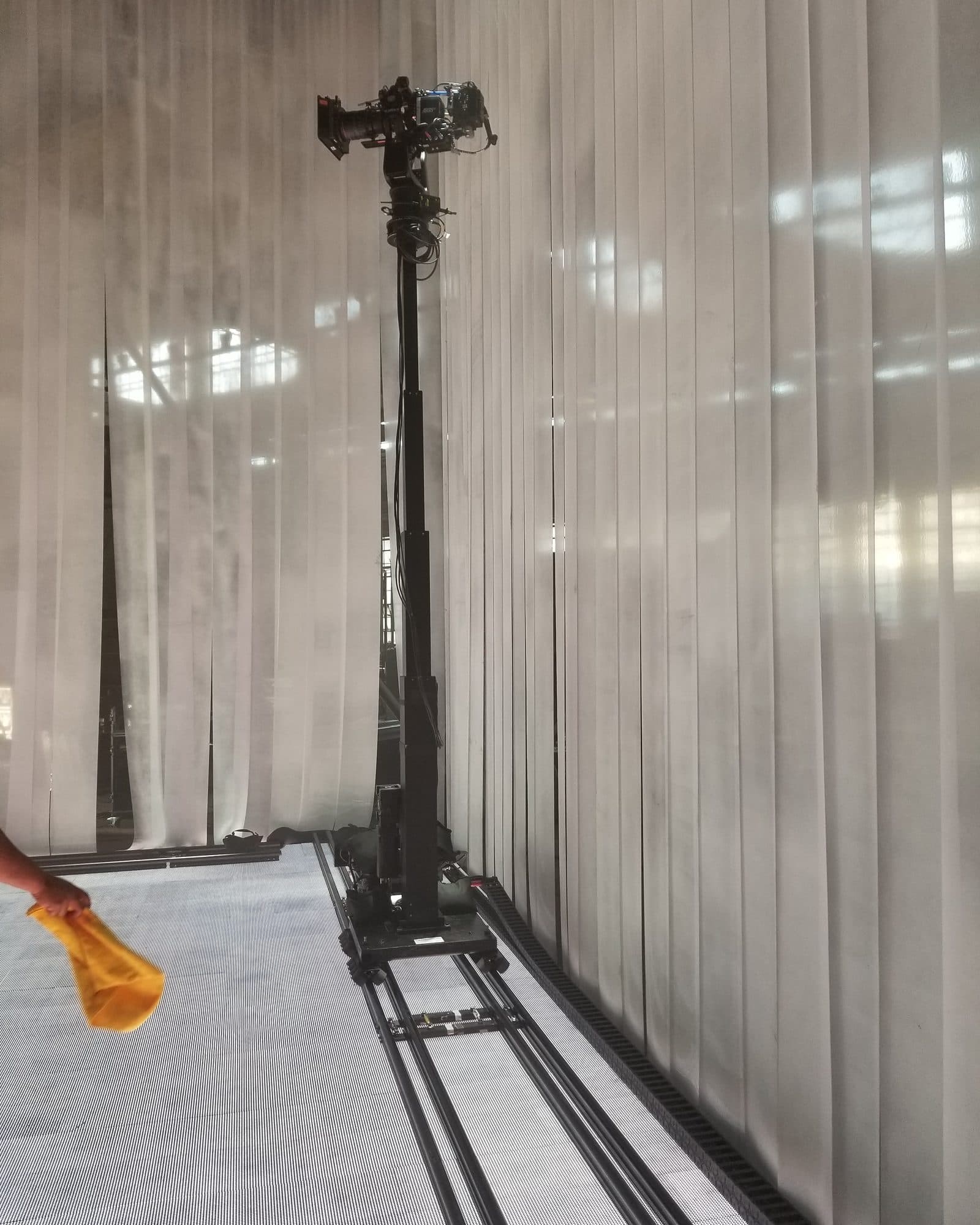

MAT Towercam 410 on a track dolly with the column raised to full extension
Extended, on track
MAT Towercam 410 being set up on a stage below the lighting truss
Stage setup

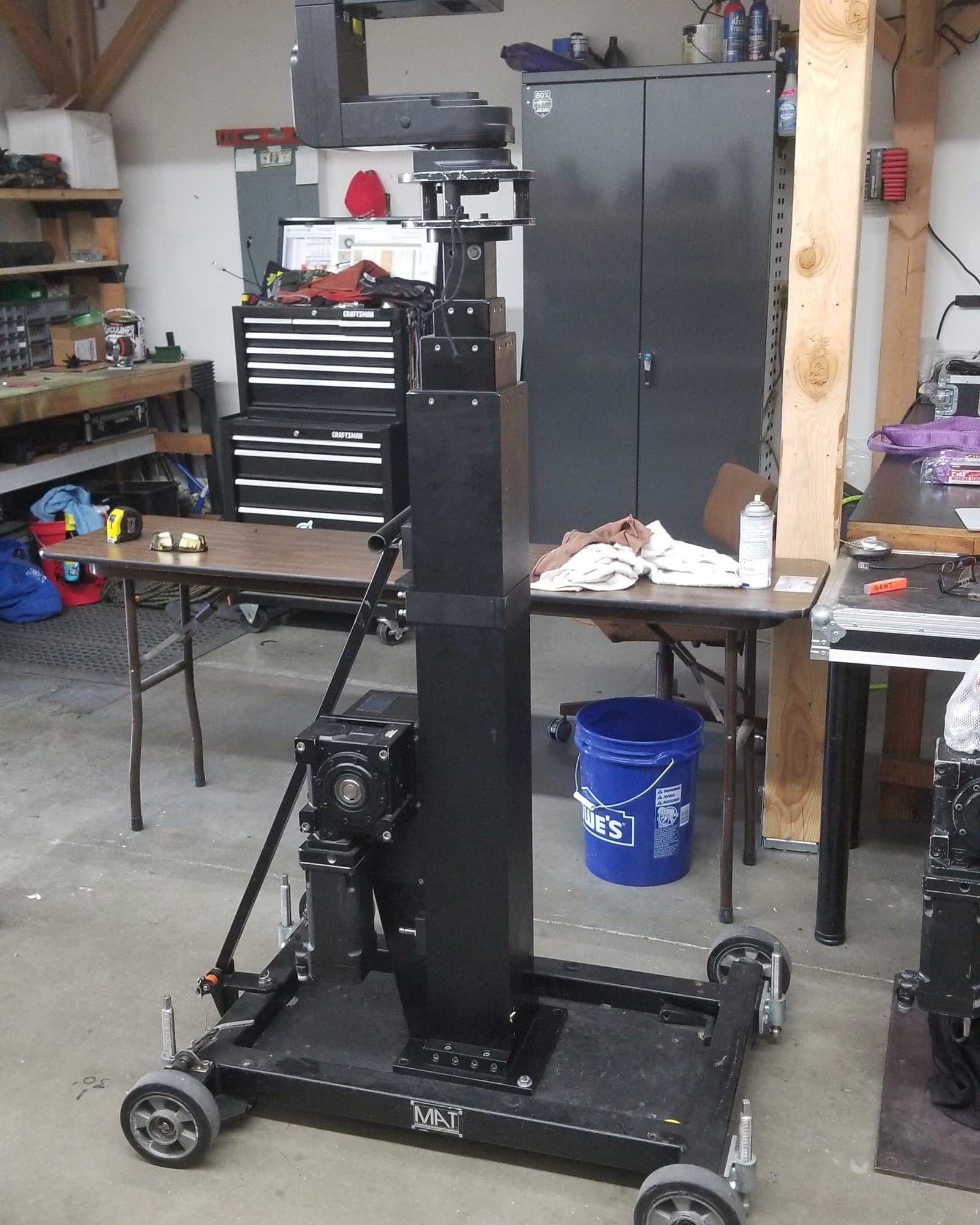

MAT Towercam 410 on its wheeled base in the Fluid Pictures shop
On its wheeled base

Other sizes

The other five

Mini1' 9" – 3' 11"XS2' 6" – 4' 6"XS+2' 8" – 7'Standard4' 4" – 15'Twin Peek6' – 16'
Previous: XS+Next: StandardAll towercams

Book it

Is the 410 the right size?

Send the position, the height you have to work with, and what needs to be in frame at the top of the rise. If another size fits better, we'll say so.

Get a towercam quoteCall 818-704-7873
