Towercam · MAT

MAT Towercam XS+

The XS with more stroke. Same compact footprint, but it clears standing eye level at the top of the move.

Check availability Call 818-704-7873

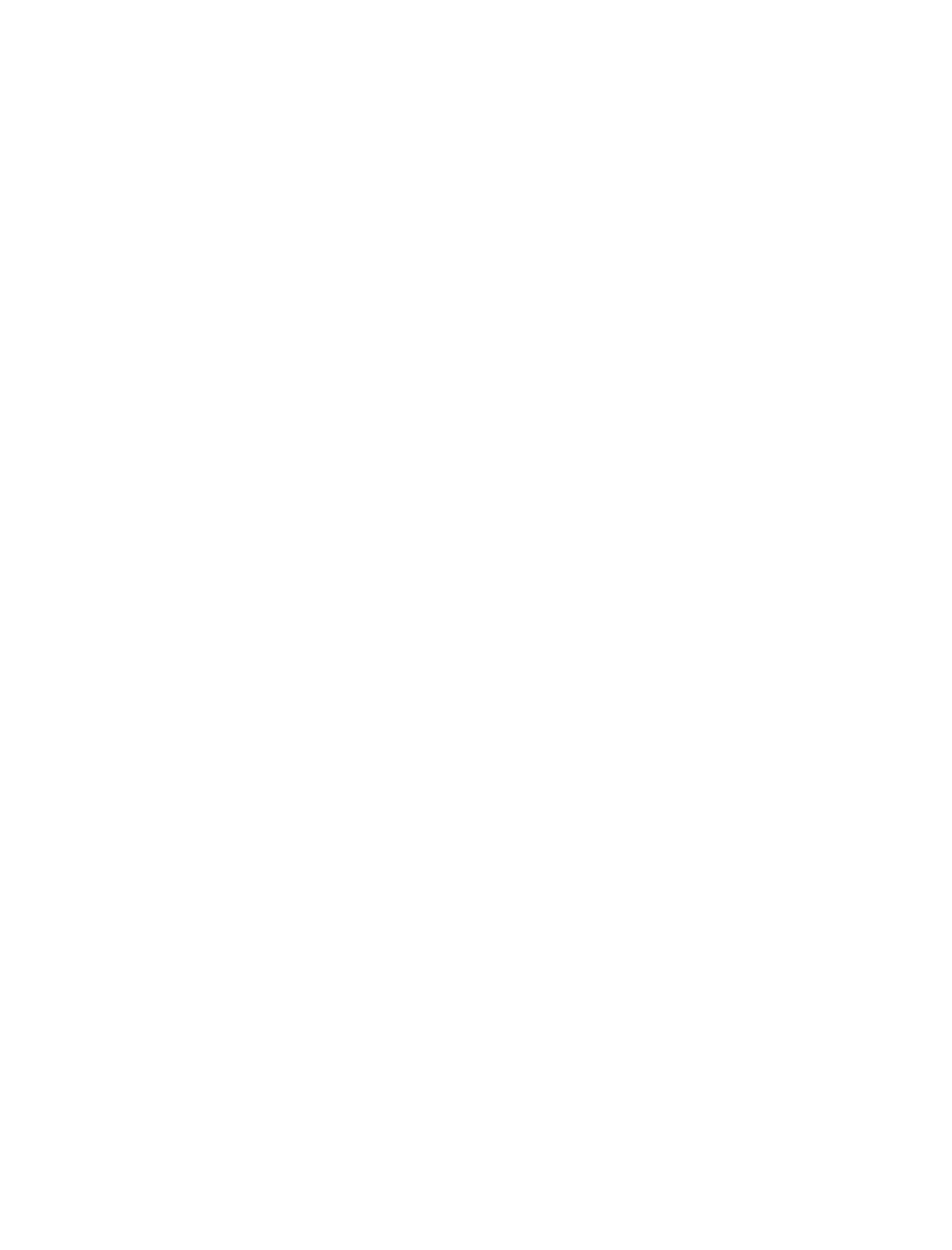

Technical drawing of the MAT Towercam XS+ in the extended position, with column and base plate dimensions

Specs

What it does

Rises that need to get above a standing crowd without moving up to a full-size tower.

Figures are column height. Total working height adds the remote head and base plate. Every towercam runs with a remote head and a Fluid Pictures technician.

Min height: 32.38" (2' 8")
Max height: 83.75" (7')
Lift speed: ~3 ft/s
Payload: 120 lb
Weight: 120 lb

On set

The XS+ in use

MAT Towercam XS+ carrying a camera beside the Roast of Bruce Willis stage set — Roast of Bruce Willis

MAT Towercam XS+ column, marked Towercam, carrying a camera beside the blue-lit American Idol judges' desk — American Idol

MAT Towercam XS+ set at the American Idol judges' desk with the house empty during setup — American Idol, before the house fills

MAT Towercam XS+ carrying a camera at the edge of an audience pit on a lit awards set — At the audience pit

MTV

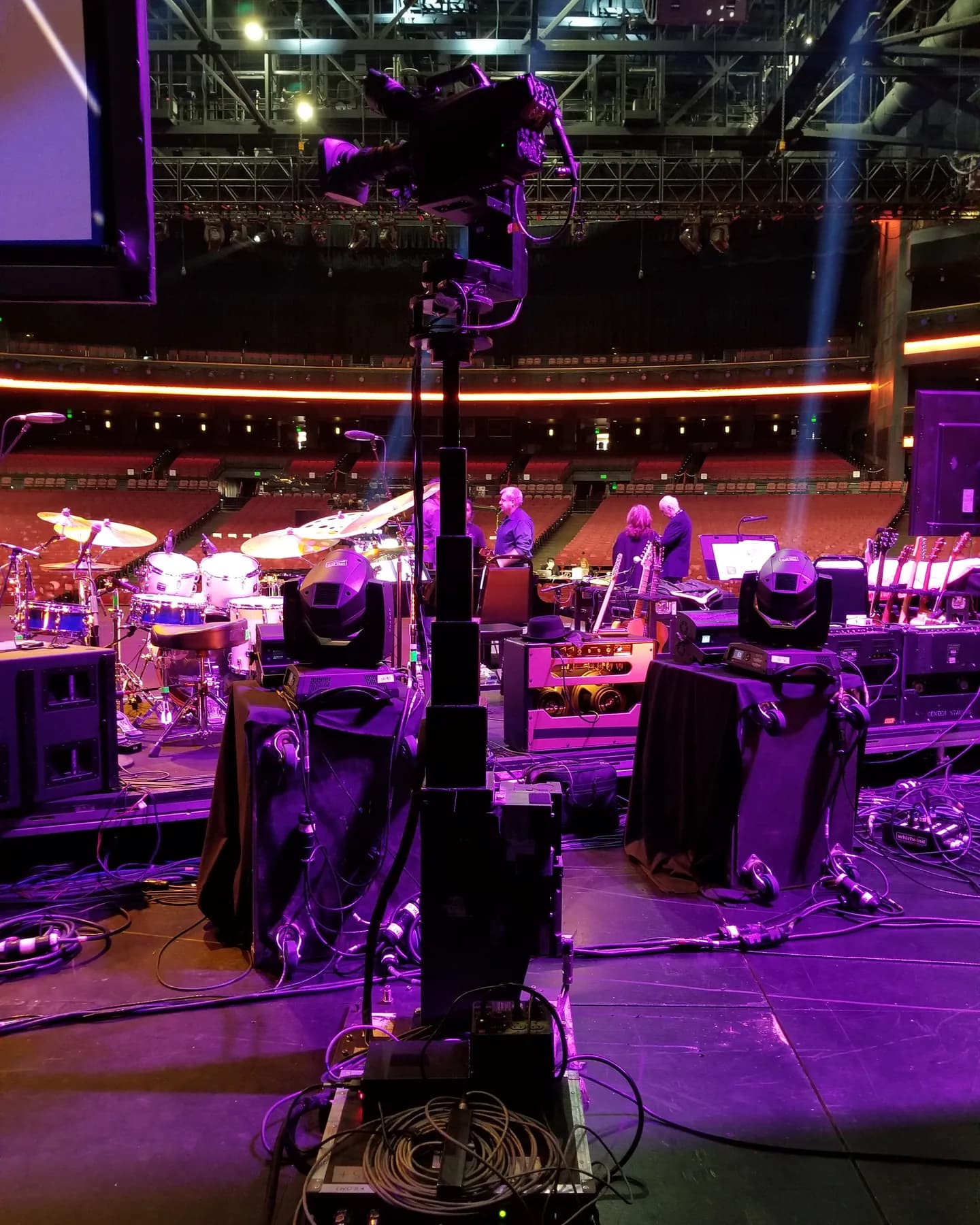

Towercam XS+ raised to full height with a camera on top, among the band gear on an arena stage — On the band stage

Other sizes

The other five

Mini1' 9" – 3' 11"XS2' 6" – 4' 6"4104' 6" – 10' 6"Standard4' 4" – 15'Twin Peek6' – 16'

Previous: XS Next: 410 All towercams

Book it

Is the XS+ the right size?

Send the position, the height you have to work with, and what needs to be in frame at the top of the rise. If another size fits better, we'll say so.

Get a towercam quote Call 818-704-7873
