MAT Towercam XS

A compact column with a full-speed lift. It keeps a small footprint on the floor and still gives the camera a real rise to play with.

Check availabilityCall 818-704-7873
Technical drawing of the MAT Towercam XS showing the column retracted and extended, with base and carriage dimensions

Specs

What it does

Low, quick rises on a crowded floor where a full-size column would be in the way.

Figures are column height. Total working height adds the remote head and base plate. Every towercam runs with a remote head and a Fluid Pictures technician.

Min height
30" (2' 6")
Max height
54" (4' 6")
Lift speed
3 ft/s
Payload
120 lb
Weight
77 lb

On set

The XS in use

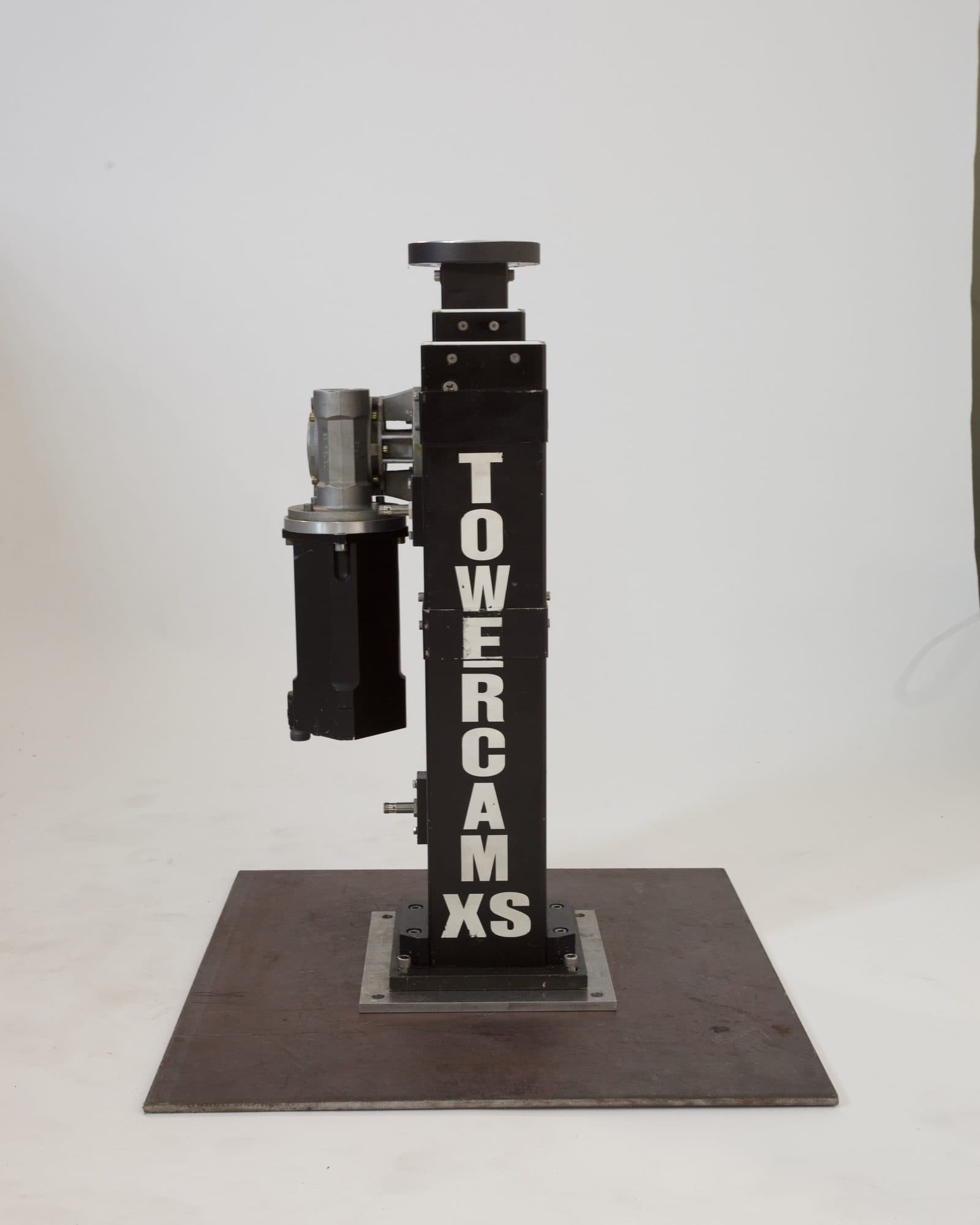

MAT Towercam XS column fully retracted on its base plate, with the remote head mounted
Retracted

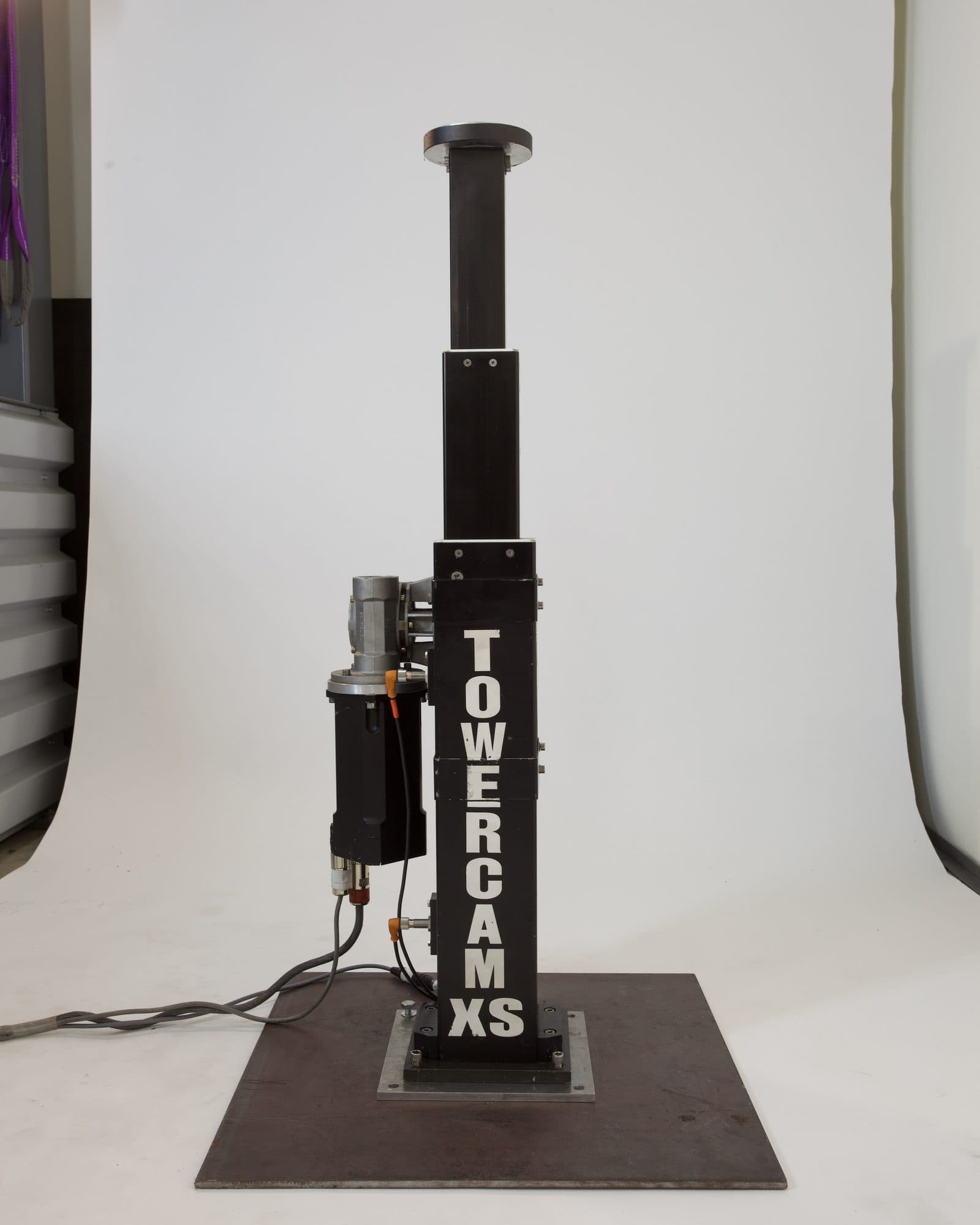

MAT Towercam XS with the column raised to full extension on its base plate
Extended
MAT Towercam XS carrying a camera on a lit television set
On a lit set
MAT Towercam XS mounted on track at an arena, carrying a broadcast camera above the seating
Arena, on track

Other sizes

The other five

Mini1' 9" – 3' 11"XS+2' 8" – 7'4104' 6" – 10' 6"Standard4' 4" – 15'Twin Peek6' – 16'
Previous: MiniNext: XS+All towercams

Book it

Is the XS the right size?

Send the position, the height you have to work with, and what needs to be in frame at the top of the rise. If another size fits better, we'll say so.
